This system is engineered to deliver reliable, silent, and stable energy during prolonged outages. Its 51.2 V LFP battery architecture provides efficient, safe power delivery with an exceptional lifespan of 20+ years under daily residential use.

⭐ 5‑Year Elite Equipment Protection Program Included Full coverage for EG4 batteries, inverters, and backup systems—automatically included with your purchase.

⚠️ No installation is included with this system. To maintain warranty eligibility, the installation must be performed by a certified and qualified professional. Full requirements are listed below.

⚡ What can this system energize?

Note: The following scenarios are realistic estimates, but every property must be evaluated individually due to its unique characteristics.

This system is available in three capacities:

• 14.3 kWh (1 battery)

• 28.6 kWh (2 batteries)

Below is the recommended scenario for the 28.6 kWh configuration.

🔋🔋 Recommended Scenario – 28.6 kWh (2 batteries)

This configuration can energize:

• 1× 18,000–24,000 BTU Inverter A/C

• Refrigerator

• LED lighting

• Fans

• Internet and WiFi

• Televisions

• Computers

• Low‑consumption medical equipment

⏳ Estimated autonomy

• 10–14 hours with an 18,000 BTU A/C

• 8–12 hours with a 24,000 BTU A/C

• 36–48 hours with essential loads

🚫 Heavy‑load segregation (very important)

To maximize backup hours and protect battery lifespan, the following loads should NOT be integrated when the system is used exclusively as backup without solar panels:

• Electric stove

• Electric water heater

• Electric dryer

• Continuous high‑consumption equipment

Keeping these loads off the system ensures longer autonomy and stable operation during extended outages.

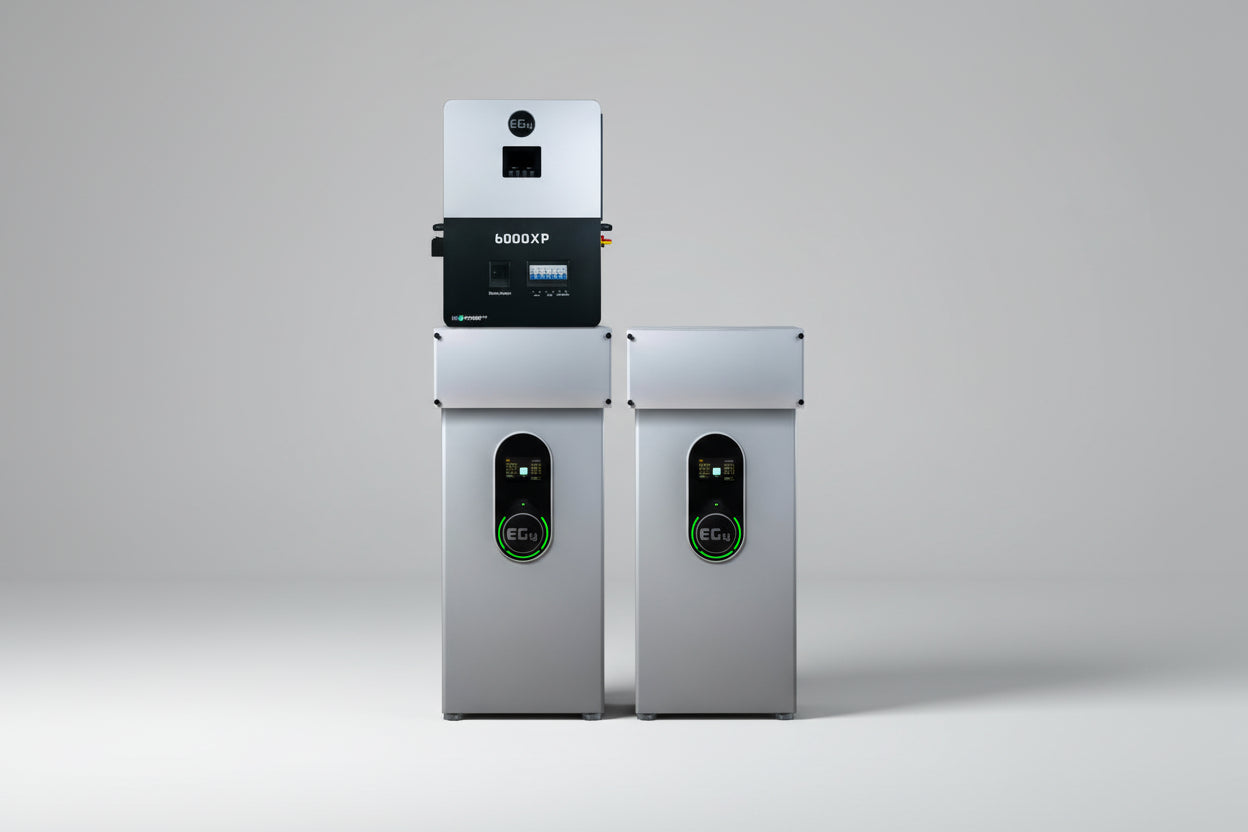

🧩 Included Components

🔌 EG4 6000XP Inverter (6 kW)

• Off‑Grid operation

• Split‑phase 120/240 V

• Up to 8 kW solar input

• 140 A battery charger

• Expandable up to 96 kW (16 units in parallel)

• Instant backup transfer

• Silent operation

🔋🔋 EG4 Indoor LFP Batteries – 28.6 kWh

• LiFePO₄ technology

• Over 8,000 cycles @ 80% DoD

• 20+ years of lifespan under daily use

• High stability and efficiency

• Smart BMS

• Touchscreen LCD display

• Integrated self‑heating

• Internal 600 A busbars

⚙️ Imported electrical accessories

• Battery ↔ inverter communication cable

• Conduit for safe cable management

• Interconnection cables for 1, 2, or 3 batteries

• Breakers

• Specialized wiring

• Protection and transfer components

🛡️ Warranty Validation Requirements (No Installation Included)

To activate the manufacturer warranty, the system must be installed by a certified professional. These requirements apply to all systems purchased without installation:

✔ Accepted installers

• Certified photovoltaic technician

• Licensed Perito Electricista

• EG4 / Signature Solar certified installer

• Licensed electrical professional with verifiable credentials

❌ Installers NOT accepted (voids warranty)

• Unlicensed individuals

• “Handymen” or helpers without credentials

• Anyone unable to provide verifiable certification

• DIY (self‑installation)

📩 Mandatory installer verification

Before warranty activation, the customer must send via WhatsApp:

1. Full name of the installer

2. Email address

3. Phone number

4. Evidence of certification or license

Our team will contact the installer directly to validate credentials.

📝 Mandatory warranty registration

After installation, the customer must register:

• Serial numbers of all components

• Installer’s validated information

• Installation date

Only systems installed by certified professionals and properly registered qualify for warranty coverage.

🌟 5‑Year Elite Protection Included. Full Coverage Without Deductible. Repair or replace. Your power system stays protected — no stress, no surprises.

📝Warranty Registration

📎 Technical Documentation

• EG4 6000XP Spec Sheet
• EG4 6000XP User Manual
• EG4 280Ah Indoor WallMount Spec Sheet
• EG4 280Ah Indoor WallMount Quick Start Guide
